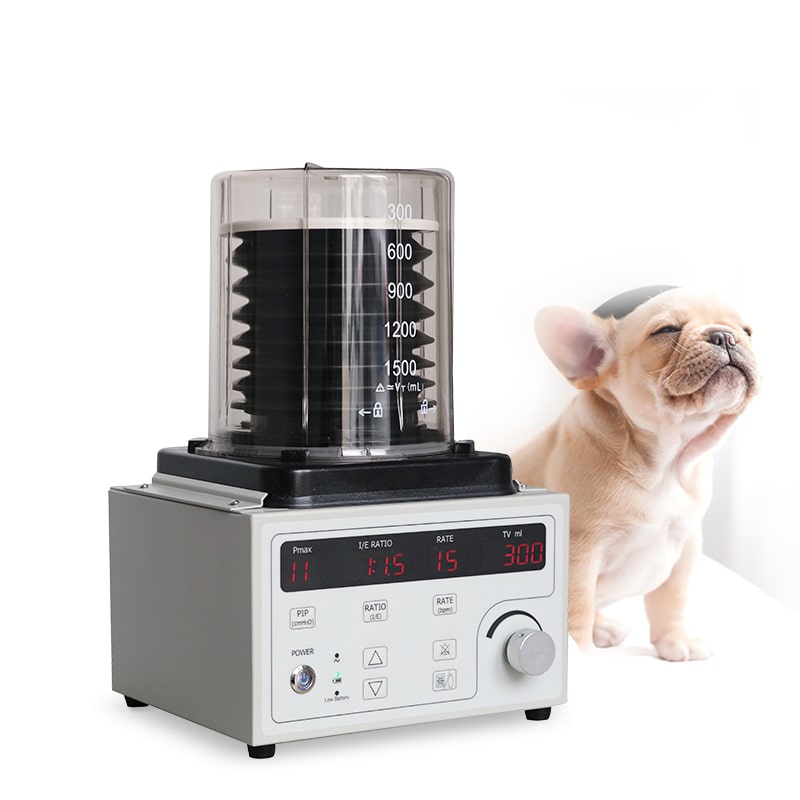

Animal Anesthesia Ventilator VT-60

Features：

●suitable for e range of anesthesia at big and small pets.

●Built-in backup battery provide the emergency power supply to the unit at 2 hours

●PIP setting 5-60cmH2O,suit for wide range operation

●With breathing mode IPPV,achieve the breathing automatically, Assure the patient more comfortable.

●With big pets bellow and small pets bellow

●the gas source pipeline take the high precious gas source,no leakage forever.

●LED digital display the important parameter.

●Set parameter at a key interface,very easy and simple to operate.

●Matching with different brand anesthesia machine

Specifications：

Pneumatically driven and electrically controlled

Display:LED digital display

Bellow：Adult：300-2000ML   Pediatric：0-300ML

Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,

TV:50-1600ml

Breathing rate:4~60bpm

I:E ration:1:1~1:4 adjustable

Upper airway pressure:2~6kpa

Lower airway pressure:0.6~2kpa

Alarm:Battery low,Power failure,Airway pressure high/low

Alarm Silence

Manuel/Auto Switch

PIP sets：5-60cmH2O
